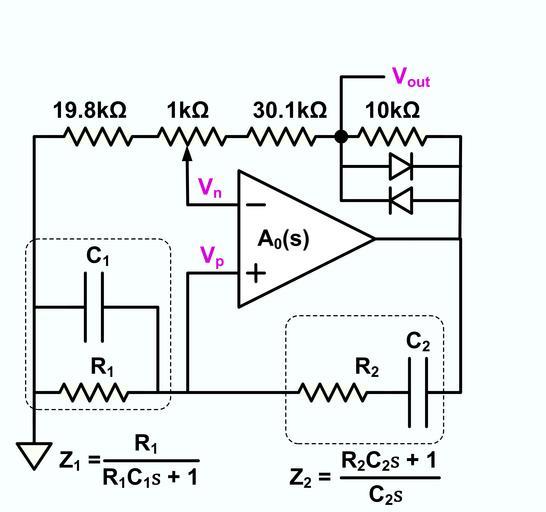

MAKE A MEME View Large Image Wien Bridge Oscillator with diode limiting.png en A Wien bridge oscillator that uses diodes to limit the output The design yield total harmonic distortion of 1 to 5 depending on how carefully it is adjusted 2015-09-20 own Constant314 other ...
