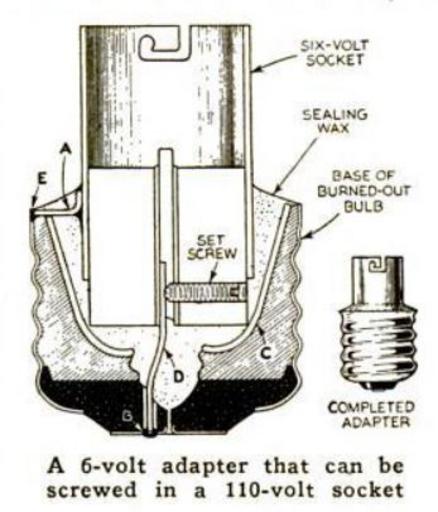

MAKE A MEME View Large Image Popular Science July 1937 Socket Adopter. A. P. Fletcher won a prize with a homemade socket adapter that enables both 6- and 110-volt bulbs to be used in the 100-volt electric sockets so that the trailer needs only one set of wining for ...
View Original:six_volt_adapter.jpg (347x406)
Download: Original    Medium    Small Thumb
Courtesy of:www.flickr.com More Like This
Keywords: cartoon drawing sketch Popular Science July 1937 Socket Adopter. A. P. Fletcher won a prize with a homemade socket adapter that enables both 6- and 110-volt bulbs to be used in the 100-volt electric sockets so that the trailer needs only one set of wining for city electric current and storage battery current from the car. The base of a burned-out bulb, a battery bulb socket, two short pieces of 13-gauge bare copper wire, sealing wax, and solder are the materials needed. Break away all the glass from the base except the lower part C, which is held by sealing wax. Drill a clip_image002[3]_thumb -in. diameter hole B through the contact disk, off center about ⅛ in. so that the curled flanges which hold the disk in place are not cut away. Secure the center wire D in place by the set screw of the 6-volt bulb socket, and solder the wire A to the outer shell. Place the socket into the screw base as nearly central as possible, and solder the wires at B and E. Warm the entire assembly and pour sealing was into the space between the 6-volt socket and the screw base. haw-creek.com/improved-trailer-fittings-make-life-on-whee... Popular Science July 1937 Socket Adopter. A. P. Fletcher won a prize with a homemade socket adapter that enables both 6- and 110-volt bulbs to be used in the 100-volt electric sockets so that the trailer needs only one set of wining for city electric current and storage battery current from the car. The base of a burned-out bulb, a battery bulb socket, two short pieces of 13-gauge bare copper wire, sealing wax, and solder are the materials needed. Break away all the glass from the base except the lower part C, which is held by sealing wax. Drill a clip_image002[3]_thumb -in. diameter hole B through the contact disk, off center about ⅛ in. so that the curled flanges which hold the disk in place are not cut away. Secure the center wire D in place by the set screw of the 6-volt bulb socket, and solder the wire A to the outer shell. Place the socket into the screw base as nearly central as possible, and solder the wires at B and E. Warm the entire assembly and pour sealing was into the space between the 6-volt socket and the screw base. haw-creek.com/improved-trailer-fittings-make-life-on-whee...
