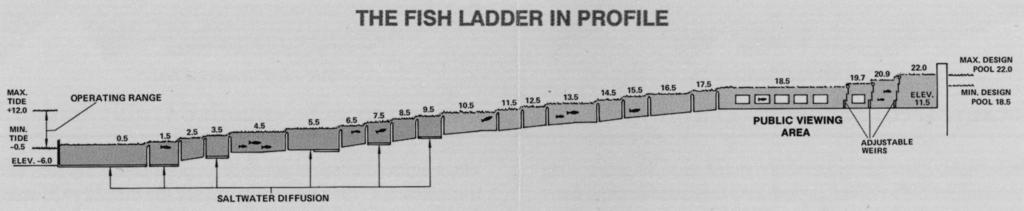

| Keywords: Lake Washington Ship Canal Fish Ladder pamphlet - The fish ladder in profile.jpg convert to SVG 78002751 From a pamphlet about the Lake Washington Ship Canal Fish Ladder at the Hiram M Chittenden Locks Seattle Washington Diagram of the fish ladder in profile The actual fish ladder makes several right angle turns which are not reflected in this diagram Caption from the pamphlet This shows the the height of each weir Most weirs are one foot higher than the previous one The last three weirs are adjustable to the level of Salmon Bay Salt water is mixed with fresh water by the diffuser well in weirs indicated by dark blue dark gray in scan The longest weir in the ladder was created when the fish viewing window was built for your viewing pleasure Scanned at 600 dpi grayscale and cleaned up Page 6 of U S Government Printing Office Pamphlet 1996-792-501 Lake Washington Ship Canal Fish Ladder Presumably 1996 based on pamphlet number US government Original work of the US Federal Government is public domain 1990s diagrams Hiram M Chittenden Locks Fish ladder Diagrams in English Biology diagrams PD-USGov | ||||
