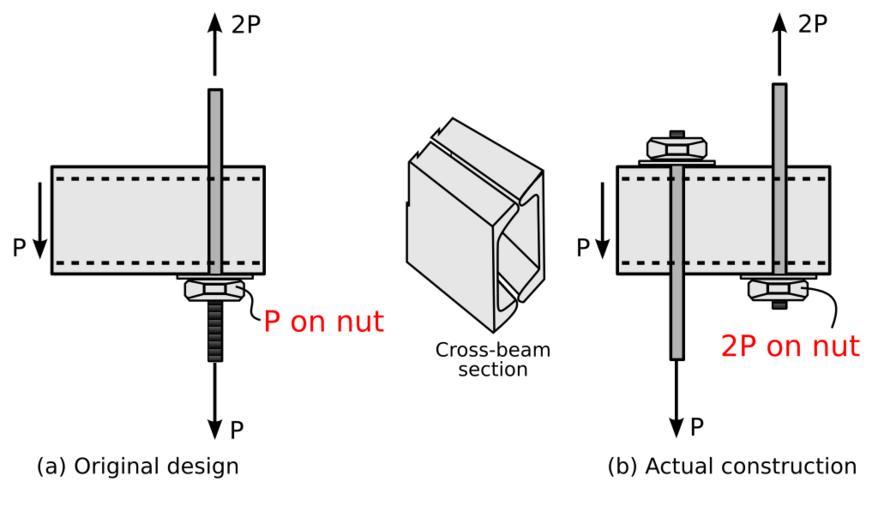

| Keywords: HRWalkway.svg Connection details of a cross beam on the fourth-floor elevated walkway in the Hyatt Regency Crown Center in Kansas City Missouri United States The failure caused the deaths of 114 people injuring 200 more It was the worst structural failure of its time 1981 <br> a Original connection design; each nut takes the load P of one walkway because the load of the NEXT walkway is transmitted through the single continous steel rod not through the nut <br> b Modified design done due to constructibility issues that ultimately led to the failure of the walkway due to one nut having to bear the the load of two walkways 2P Own tracing of w File HRWalkway-01 jpg <br> uploaded to Commons by Wadester16 2007-06-06<br> transferred to Commons 28 March 2009 DTR see also original creator at w File HRWalkway-01 jpg See below For details of original work see w File HRWalkway-01 jpg DTR Original upload log page en wikipedia HRWalkway svg 2007-06-07 16 50 DTR 720×420× 98259 bytes <nowiki> Inkscape Hyatt Regency walkway connection details Drawn by K Ha converted to SVG by DTR NoRightsReserved </nowiki> 2007-06-07 16 49 DTR 720×420× 99013 bytes <nowiki> Inkscape Hyatt Regency walkway connection details Drawn by K Ha converted to SVG by DTR NoRightsReserved </nowiki> 2007-06-07 16 37 DTR 720×420× 99013 bytes <nowiki> Inkscape Hyatt Regency walkway connection details Drawn by K Ha converted to SVG by DTR This version contains changed colours in text NoRightsReserved </nowiki> 2007-06-06 18 50 DTR 720×420× 101464 bytes <nowiki> Inkscape Hyatt Regency walkway connection details Drawn by K Ha converted to SVG by DTR NoRightsReserved </nowiki> 2007-06-06 18 43 DTR 720×420× 101193 bytes <nowiki> Inkscape Hyatt Regency walkway connection details Drawn by K Ha converted to SVG by DTR NoRightsReserved </nowiki> 2007-06-06 18 34 DTR 720×420× 96828 bytes <nowiki> Inkscape Hyatt Regency walkway connection details Drawn by K Ha converted to SVG by DTR NoRightsReserved </nowiki> 2007-06-06 18 29 DTR 720×420× 27634 bytes <nowiki> Inkscape Hyatt Regency walkway connection details Drawn by K Ha converted to SVG by DTR NoRightsReserved </nowiki> Other information en wikipedia 2009 March 28 Created with Inkscape Hyatt Regency walkway collapse Technical diagrams Screws and wall plugs | ||||
