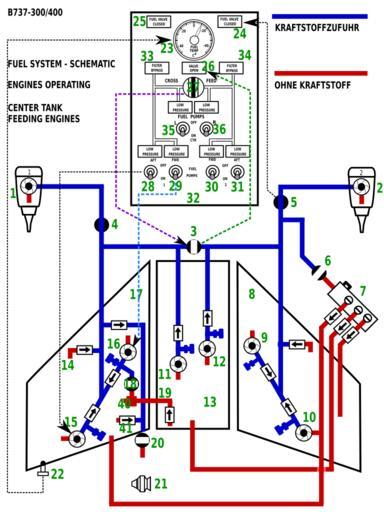

Keywords: Fuel system B737-300 01.svg fuel system B737-300/400 Version ohne Legende Image Fuel system B737-300 04 svg Own 2007-11 RosarioVanTulpe 1 Engine Driven Fuel Pump - Left Engine 2 Engine Driven Fuel Pump - Right Engine 3 Crossfeed Valve 4 Left Engine Fuel Shutoff Valve 5 Right Engine Fuel Shutoff Valve 6 Manual Defuling Valve 7 Fueling Station 8 Tank No 2 Right 9 Forward Fuel Pump Tank No 2 10 Aft Fuel Pump Tank No 2 11 Left Fuel Pump Center Tank 12 Right Fuel Pump Center Tank 13 Center Tank 14 Bypass Valve 15 Aft Fuel Pump Tank No 1 16 Forward Fuel Pump Tank No 1 17 Tank No 1 Left 18 Fuel Scavenge Shutoff Valve 19 20 APU Fuel Shutoff Valve 21 APU 22 Fuel Temperature Sendor 23 Fuel Temperature Indicator 24 Right Fuel Valve Closed Indicator Light 25 Left Fuel Valve Closed Indicator Light 26 Crossfeed Valve Open Indicator Light 27 Crossfeed Selector 28 Fuel Pump Switch for Left Aft Fuel-Pump 29 Fuel Pump Switch for Left Forward Fuel-Pump 30 Fuel Pump Switch for Right Forward Fuel-Pump 31 Fuel Pump Switch for Right Aft Fuel-Pump 32 Fuel Control Panel Part of Overhead Panel 33 Left Filter Bypass Indicator Light 34 Right Filter Bypass Indicator Light 35 Left Center Tank Fuel Pump Switch 36 Right Center Tank Fuel Pump Switch 40 Center Tank Scavenge Jet Pump 41 APU Bypass Valve Boeing 737-300 SVG aircraft instruments Aircraft fuel systems Parts and systems of Boeing 737 Classic |
