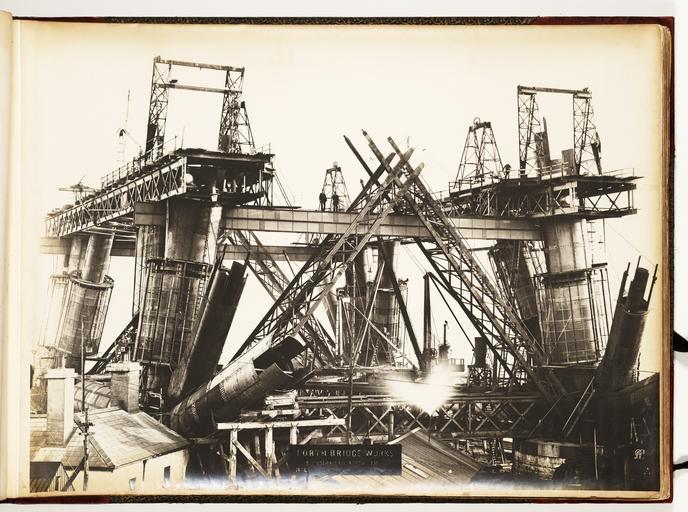

Keywords: Forth Bridge - Superstructure, North Side.jpg Photograph of the Fife superstructure lifting girders and platforms Owing to the fact that the Fife cantilever occurs on the foreshore and is overlooked by rising ground to the north it afforded an opportunity of obtaining certain views not practicable in the case of the other two Not only did its situation admit of perspective effect being duly emphasised but also that of the rectangular form of the structure only apparent when each vertical column is separately defined The cages before referred to are all seen here in position prior to the first lift Up to this level the superstructure was erected by means of ordinary cranes and staging In the vertical columns and at a height of about 30 feet above the surface of the pier a plate was omitted on either side of the same In the gap thus formed were built two box girders having a dimension of about 5 feet by 2 feet Superimposed upon these girders were what were subsequently known as the lifting platrofms - comprised of material destined to be ultimately worked into the permanent structure - and through which the upper ends of the vertical tubes and struts projected The total weight of these four girders and their accessories amounted to about 400 tons the whole being supported by and lifted from the vertical columns in the following manner - Inside each of these columns were constructed two frames the upper side of the one being connected to the lower of the other by means of hydraulic jacks contrived in such a way as to oscillate in a plane at right angles to the centre line of the bridge Through the rigs of the columns holes were drilled at equal distances apart and into these holes steel pins were inserted supporting either frame Everything being ready for a lift the jacks were set in motion the thrust being taken by the lower frames and duly transmitted to the pins At the end of the stroke pins were inserted below the under side of upper frame and the jacks eased whereupon the whole weight of the platform came upon the upper frame the lower one simultaneously drawn up by the closing of the jacks and secured by pins being at once in readiness for another lift The rate of progress was to a large extent governed by the weather but under favourable circumstances it was extremely rapid as many as three lifts having been effected in eight days and the necessary riveting accomplished in the cages attached The tension girder connecting the vertical columns from east to west is noticeable in the foreground of the picture as is also a part of the diagonal bracings which is designed to afford the principal support fo the internal viaduct The gallows so conspicuous above the vertical columns on the lifting-platforms answer the purpose of cranes and were employed in lifting and holding the plates in position until temporarily bolted The means of access to the upper part of the structure independently of lifts is shown in the staircase running up the diagonal bracing and subsequently continued in a similar fashion to the full height of the superstructure Transcription from Philip Phillips 'The Forth Railway Bridge' Edinburgh 1890 Size cm 43 58 exhibition history Institution National Library of Scotland photograph object history PD-old-70-1923 Creator Philip Phillips RB l 229 74570312 Forth Bridge - Superstructure North Side Uploaded with GWToolset Forth Bridge - Superstructure North Side http //deriv nls uk/56YK98Q/7443/74438655 2 jpg Construction of the Forth Bridge Images uploaded as part of NLS-WMUK collaboration |
