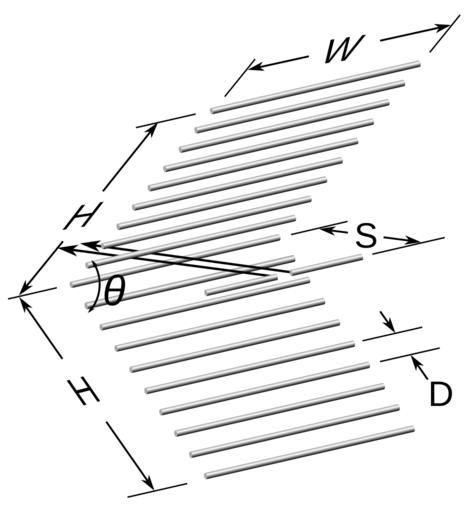

MAKE A MEME View Large Image Corner reflector antenna diagram.svg corner reflector antenna It consists of a half wave dipole antenna mounted in front of two flat rectangular reflectors joined at an angle θ which is usually 90° The reflector is usually made of rods ...
View Original:Corner reflector antenna diagram.svg (20150x21746)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Corner reflector antenna diagram.svg corner reflector antenna It consists of a half wave dipole antenna mounted in front of two flat rectangular reflectors joined at an angle θ which is usually 90° The reflector is usually made of rods parallel to the dipole element Corner reflector antennas have gain of 12-15 dBi high front-to-back ratio and wide bandwidth They are used as directive antennas at UHF frequencies in applications such as television antennas and point-to-point data communication links 2014-08-09 15 41 27 own Chetvorno cc-zero Uploaded with UploadWizard Terrestrial television antennas Corner reflector antennas
