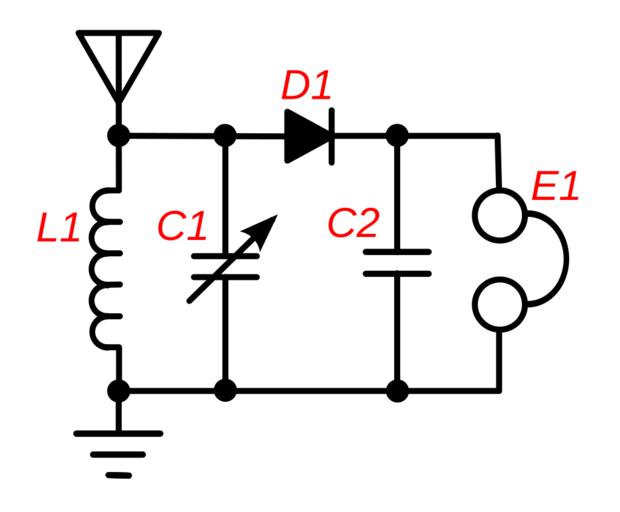

MAKE A MEME View Large Image Common crystal radio circuit.svg Common crystal radio circuit used in inexpensive crystal radios sold today The tuning coil L1 and capacitor C1 together make up the tuned circuit; it selects the radio signal to be received out of all the ...
View Original:Common crystal radio circuit.svg (450x373)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Common crystal radio circuit.svg Common crystal radio circuit used in inexpensive crystal radios sold today The tuning coil L1 and capacitor C1 together make up the tuned circuit; it selects the radio signal to be received out of all the signals picked up by the antenna C1 is adjustable and is used to tune in different stations The crystal detector D1 rectifies the radio frequency current from the tuned circuit to pulsing direct current to extract the audio modulation from the radio frequency carrier wave The earphone E1 converts the audio current to sound waves own 2010-05-18 Chetvorno I Chetvorno the author of this drawing release it to the public domain for any use whatever Crystal radios
