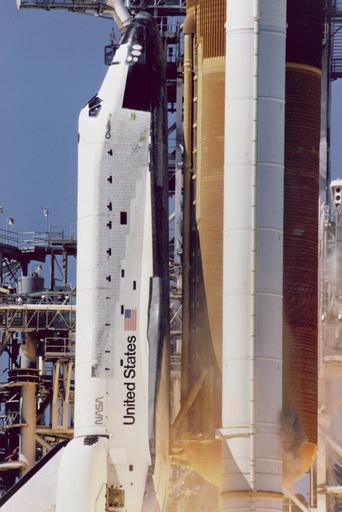

| Keywords: challenger et explosion external tank externaltank o-ring seal oringseal putty srb sts-51l sts51l solid rocket booster solidrocketbooster Close-up view of the liftoff of the Shuttle Challenger on mission STS-51L taken from camera site 39B-2/T3. From this camera position, a cloud of grey-brown smoke can be seen on the right side of the Solid Rocket Booster (SRB) on a line directly across from the letter "U" in United States. This was the first visible sign that an SRB joint breach may have occured. On January 28, 1986 frigid overnight temperatures caused normally pliable rubber O-ring seals and putty that are designed to seal and establish joint integrity between the Solid Rocket Booster (SRB) joint segments, to become hard and non- flexible. At the instant of SRB ignition, tremendous stresses and pressures occur within the SRB casing and especially at the joint attachmentment points. The failure of the O-rings and putty to "seat" properly at motor ignition, caused hot exhaust gases to blow by the seals and putty. During Challenger's ascent, this hot gas "blow by" ultimately cut a swath completely through the steel booster casing; and like a welder's torch, began cutting into the External Tank (ET). It is believed that the ET was compromised in several locations starting in the aft at the initial point where SRB joint failure occured. The ET hydrogen tank is believed to have been breached first, with continuous rapid incremental failure of both the ET and SRB. A chain reaction of events occurring in milliseconds culminated in a massive explosion. The orbiter Challenger was instantly ejected by the blast and went askew into the supersonic air flow. These aerodynamic forces caused structural shattering and complete destruction of the orbiter. Though it was concluded that the G-forces experienced during orbiter ejection and break-up were survivable, impact with the ocean surface was not. Tragically, all seven crewmembers perished. Image #: Date: January 28, 1986 Close-up view of the liftoff of the Shuttle Challenger on mission STS-51L taken from camera site 39B-2/T3. From this camera position, a cloud of grey-brown smoke can be seen on the right side of the Solid Rocket Booster (SRB) on a line directly across from the letter "U" in United States. This was the first visible sign that an SRB joint breach may have occured. On January 28, 1986 frigid overnight temperatures caused normally pliable rubber O-ring seals and putty that are designed to seal and establish joint integrity between the Solid Rocket Booster (SRB) joint segments, to become hard and non- flexible. At the instant of SRB ignition, tremendous stresses and pressures occur within the SRB casing and especially at the joint attachmentment points. The failure of the O-rings and putty to "seat" properly at motor ignition, caused hot exhaust gases to blow by the seals and putty. During Challenger's ascent, this hot gas "blow by" ultimately cut a swath completely through the steel booster casing; and like a welder's torch, began cutting into the External Tank (ET). It is believed that the ET was compromised in several locations starting in the aft at the initial point where SRB joint failure occured. The ET hydrogen tank is believed to have been breached first, with continuous rapid incremental failure of both the ET and SRB. A chain reaction of events occurring in milliseconds culminated in a massive explosion. The orbiter Challenger was instantly ejected by the blast and went askew into the supersonic air flow. These aerodynamic forces caused structural shattering and complete destruction of the orbiter. Though it was concluded that the G-forces experienced during orbiter ejection and break-up were survivable, impact with the ocean surface was not. Tragically, all seven crewmembers perished. Image #: Date: January 28, 1986 | ||||
