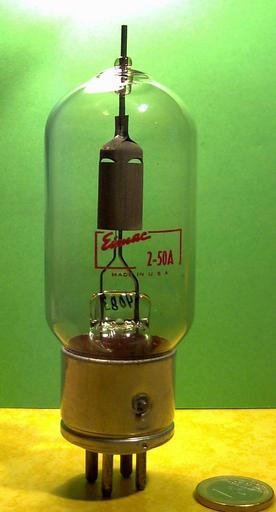

MAKE A MEME View Large Image 2-50A 2 (2).JPG Diodo de alto vacío The Eimac 2-50A a high power diode vacuum tube used in radio equipment to convert alternating current to direct current The terminal at the top of the tube is attached to the cylindrical plate electrode ...
View Original:2-50A 2 (2).JPG (844x1564)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: 2-50A 2 (2).JPG Diodo de alto vacío The Eimac 2-50A a high power diode vacuum tube used in radio equipment to convert alternating current to direct current The terminal at the top of the tube is attached to the cylindrical plate electrode at center The two wires at bottom support a filament not visible inside the plate When the tube is operating electrons emitted from the hot filament travel to the plate allowing current to flow in one direction but not in the opposite Idirection rectifying The datasheet says the tube has a maximum DC plate current rating of 75 milliamps maximum peak plate current rating of 1 ampere maximum power dissipation of 30 watts and a maximum peak inverse voltage PIV rating of 30 000 volts In a half-wave rectifier circuit with a capacitor input filter a single 2-50A can deliver 12 500 V DC at 60 ma from a 10 600 V rms supply The filament voltage is 5 v Datasheet can be found http //frank pocnet net/sheets/088/2/2-50A pdf here Own 2006-10-27 Antonio Pedreira Vacuum diodes Eimac vacuum tubes
